Set Receipt Layout to HTML Format On Report

Follow the steps below to set the receipt layout to HTML format when printing from a report. This is applicable when opening a transaction report on the checkout screen and printing a transaction receipt from that interface.

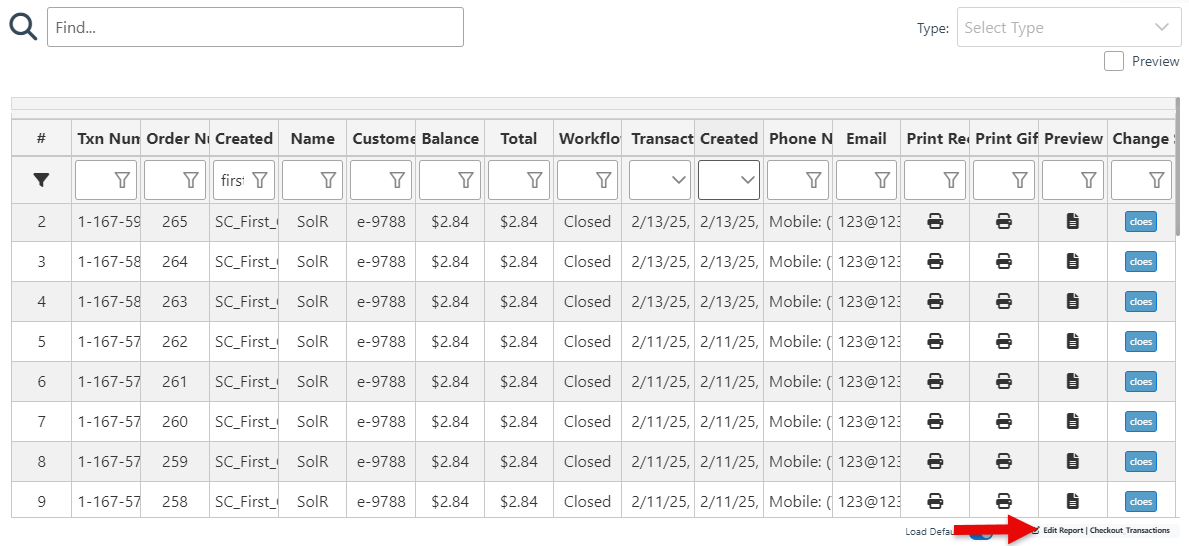

  1. To edit the report configurations, open the “Load transaction” or any other transaction report on the checkout screen, and click the edit report button located at the bottom right of the page.

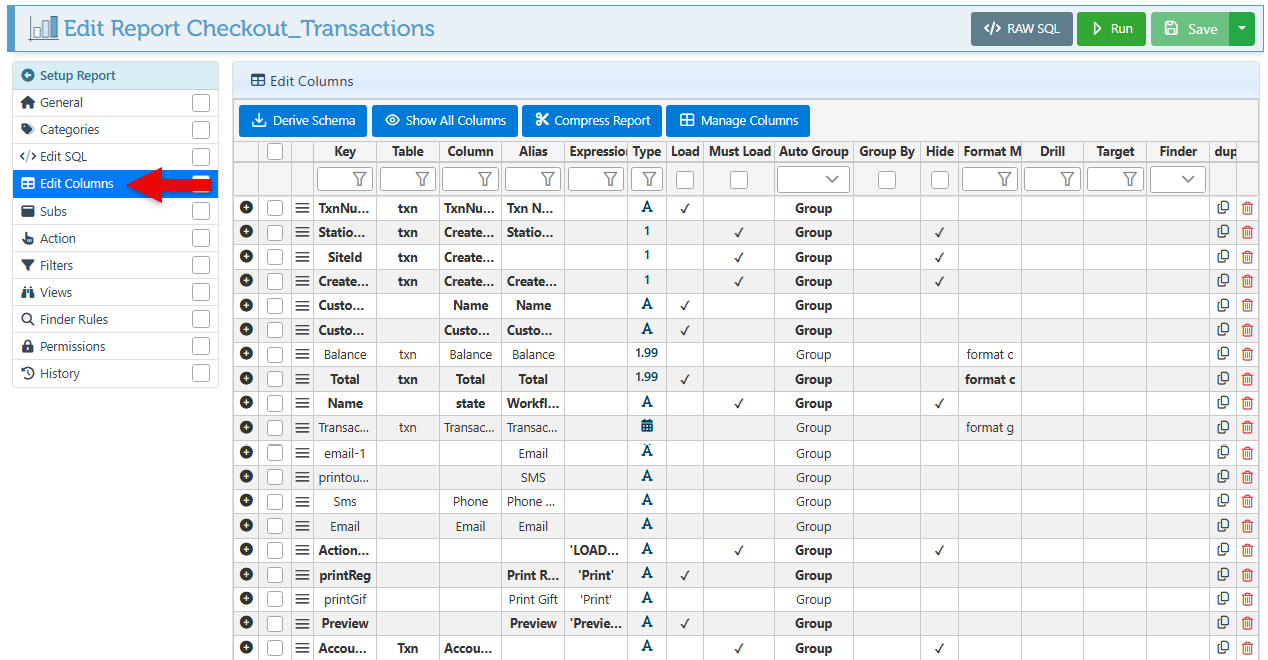

  1. Navigate to the “Edit Columns” tab in the Setup Report menu on the left.

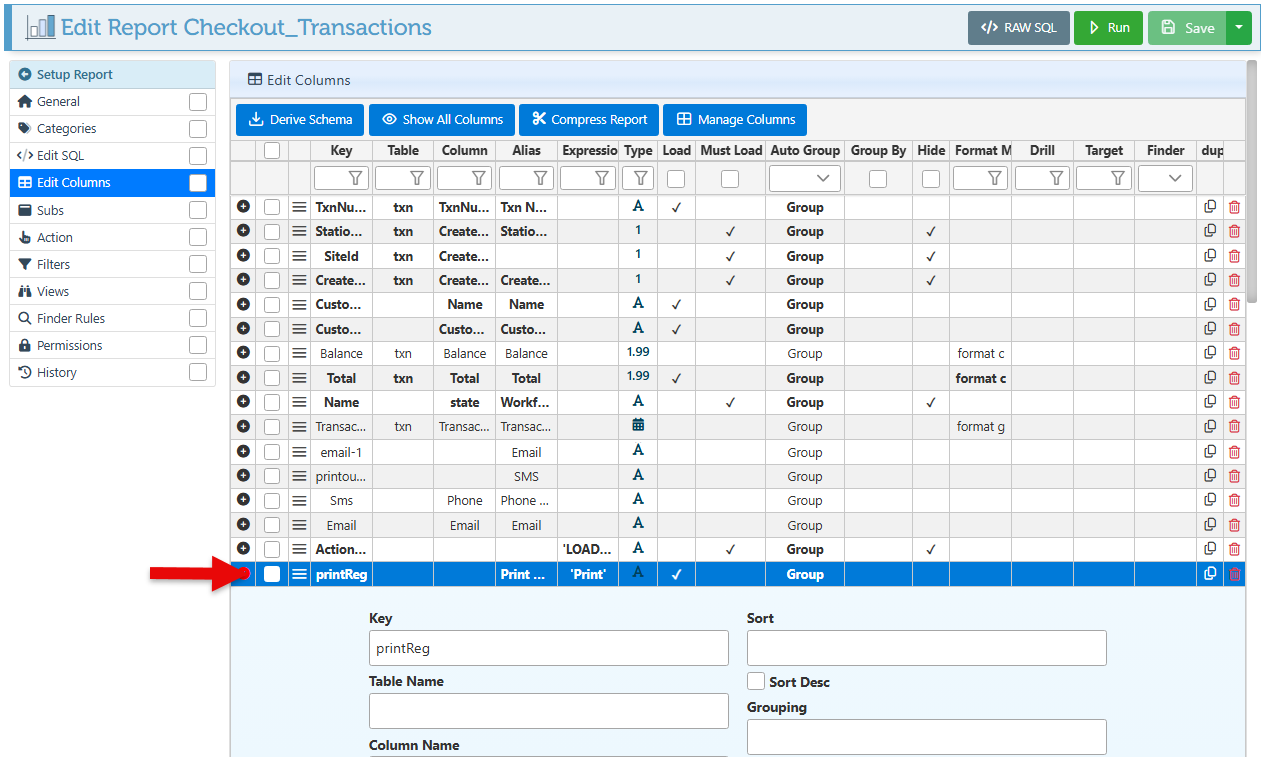

  1. Click the (+) button on the left of the “PrintReg” row to expand the configurations.

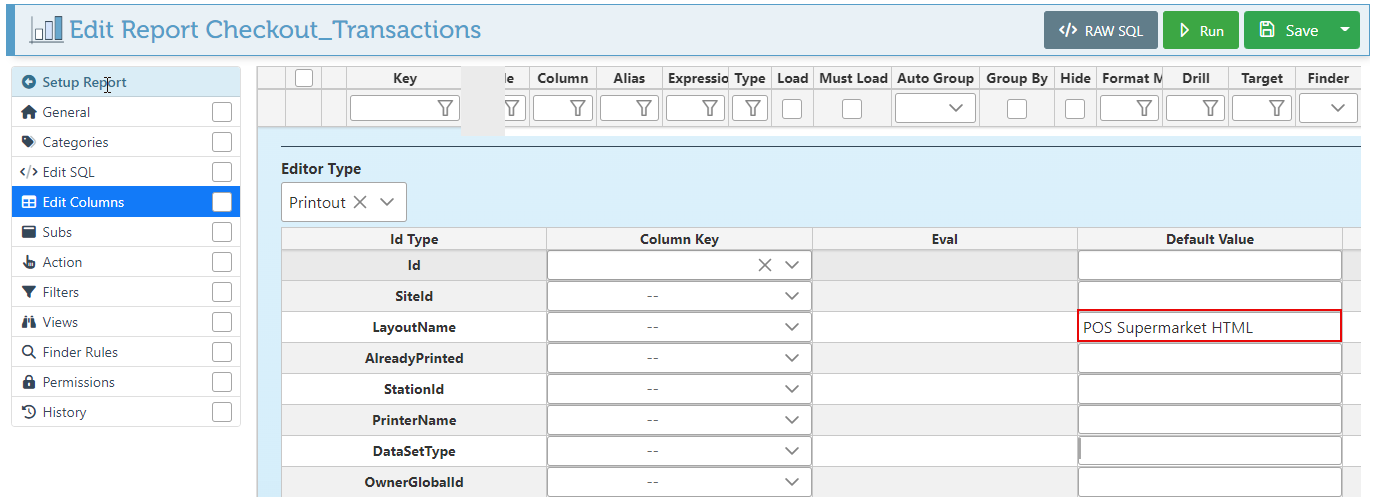

  1. Scroll down within the expanded column configurations to navigate to the Editor-Type section. Input the correct receipt printout layout name ( HTML format) in the Default Value field of the Layout Name row.

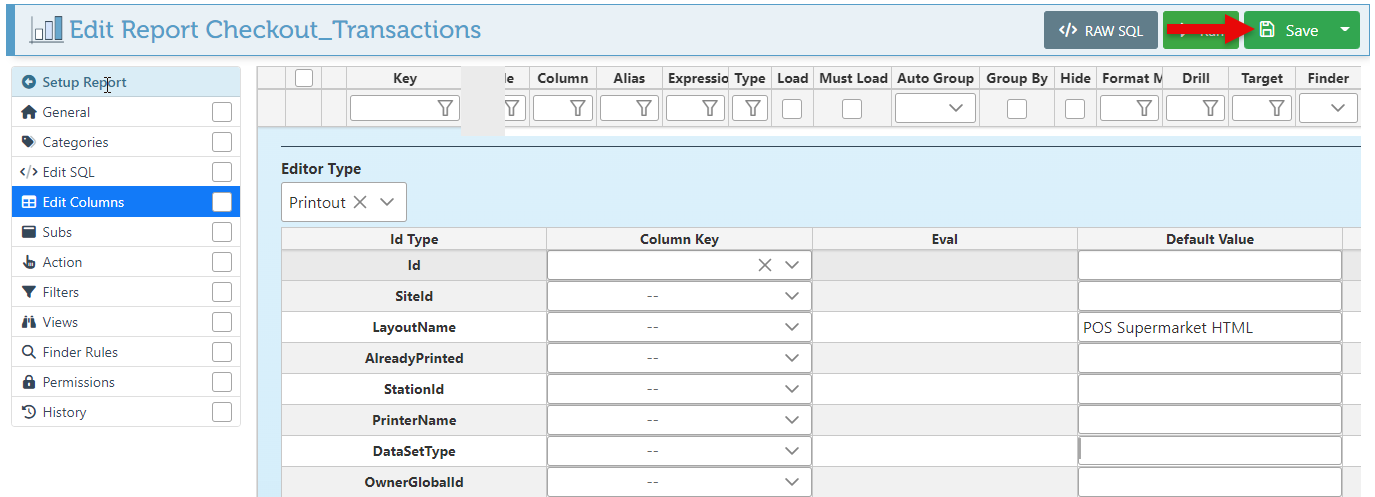

  1. Click “Save” at the top right to save changes.
